Luxury Gold Air Blower Lottery Machine with Console

Model: YP600

  • Gold cylindrical cabinet with blue trim and red accent ring, built for VIP floors
  • 1940 mm tall transparent display tube keeps every ball in the audience's sight
  • Microprocessor auto mode sets mixing time, ball count and intervals per draw
  • 15-second draw cycle keeps gala, casino and cruise schedules on pace
  • Runs 30-300 balls of 4 cm diameter, table-tennis style or solid balls
  • Perforated-light acrylic console podium stages the operator beside the machine
  • 110-120V / 220-240V dual voltage, CE compliant, ready for global venues

Get a Quote

Product: Luxury Gold Air Blower Lottery Machine with Console

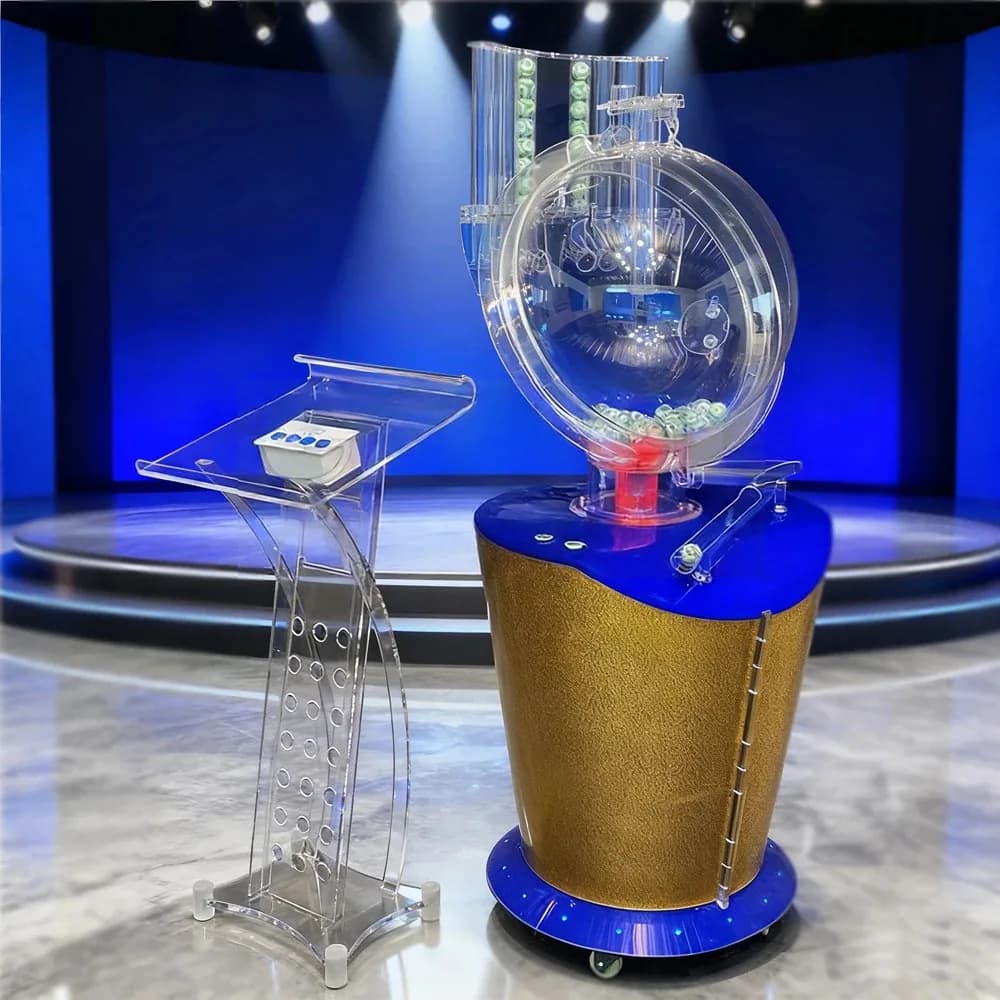

Gold air blower lottery machine with clear acrylic console podium on a blue-lit studio stage, numbered balls loaded.

Where the Gold YP600 Air-Blower Lottery Machine Earns Its Floor Space

Deluxe Lotto Machine on Gold Pedestal

Inside the Luxury Gold Air Blower Lottery Machine with Console

The Luxury Gold Air Blower Lottery Machine with Console (model YP600) is a deluxe lotto machine standing 1940 mm tall on a gold cylindrical cabinet with blue trim and a red accent ring. It is built for casinos, cruise ships and VIP lottery venues that buy on appearance as much as on a transparent, audience-visible draw. A perforated-light acrylic control podium completes the stage setup.

Why put a luxury air blower lottery machine on a gold pedestal?

Because at this level of venue, the machine is part of the decor. The YP600 pairs a gold cylindrical cabinet with blue台面 and base edging, a red accent ring at the foot, and a fully transparent spherical mixing chamber crowned by a clear top display tube. Every ball stays visible from the moment mixing starts to the moment it rises into the tube, which is exactly what VIP guests and camera crews need to trust a draw. The matching console is a clear acrylic podium with perforated light holes across its face and a white control box on top, so the operator stands beside the machine in full view instead of behind a black box. Under the acrylic, a 450 W air blower drives the mixing and completes each ball selection in 15 seconds. This is a premium lottery drawing machine in the literal sense: the housing materials, the lighting effects and the podium are all designed for rooms where guests notice finishes.

Where does the YP600 work best on your floor?

The YP600 is specified for venues that run scheduled, audience-facing draws. Four scenarios below cover the layouts we see most often, with the site conditions each one imposes.

Casino VIP lounges and member draw nights

Position the machine at the head of the lounge or on a low stage, with the gold cabinet facing the seating rows and the console podium angled toward the host. One trained staff member operates the console while a host announces results. A typical session runs 8-12 draws; at 15 seconds per selection plus announcement time, a full session fits inside 30 minutes. The 780 x 780 mm footprint passes standard casino service doors, and the built-in casters let two staff roll it between the lounge and storage. You need one 450 W wall outlet within cable reach of the stage and a ceiling clear of the 1940 mm tube with headroom to spare.

Cruise ship event decks and theater lounges

Cruise entertainment teams use the YP600 for scheduled lottery-style entertainment draws and bingo-style number calls in the main lounge. Place it center-stage under the show lighting so the transparent chamber and the lighting effects read from the back rows; the acrylic podium sits downstage for the cruise staff operator. Confirm the deck ceiling clears 1940 mm before scheduling, and route a single 450 W feed from the stage power panel. Because the machine rolls on casters, the deck crew can strike it after the event and store it without a forklift. Specify 110-120V 60Hz or 220-240V 50Hz at order time to match the ship's supply.

Hotel ballrooms, corporate galas and real-estate launch draws

For gala dinners, anniversary celebrations and property-launch lucky draws, the YP600 works as a stage centerpiece: machine upstage, console podium downstage-left, camera or big screen covering the transparent chamber for the back tables. An event host runs the interactive mode from the podium while a staff member loads the 30-300 balls before doors open. Ball count is set to the guest or unit count, and the auto mode spaces selections with adjustable intervals so the emcee controls pacing. The ballroom needs a standard 450 W outlet stage-side, a service corridor at least 800 mm wide for load-in, and lighting kept off the transparent tube so reflections do not hide the balls on camera.

Game rooms, auctions and promotional draw events

In game rooms, bidding events and auction houses, the YP600 replaces manual drawing with a visible mechanical process guests can audit with their own eyes. Put it against a feature wall with the podium facing the audience queue; the operator calls each number as it rises into the top tube. The microprocessor-controlled automatic mode handles repeat draws all evening without operator fatigue, with mixing duration, ball count and selection intervals set once at the start of the event. Keep the acrylic faces away from sharp tools during setup, and plan cable covers across any walkway feeding the 450 W supply.

How do the automatic and interactive modes run a live draw?

In automatic mode, a microprocessor controls every draw function. The operator programs the three parameters that define a session: how long the blower mixes the balls, how many balls are selected, and the time interval between selections. Once set, the machine repeats the cycle identically all evening, which is what casinos and cruise ships need for scheduled event blocks. In interactive mode, the host at the acrylic podium triggers each stage from the white control box, letting the audience's anticipation set the tempo instead. Both modes drive the same air-blower mixing chamber and the same 15-second selection cycle, and the built-in lighting effects add drama as each ball climbs the transparent display tube. Because the parameters live in the controller rather than in hardware, one YP600 can serve a fast-paced promotional draw at lunch and a slow, ceremonial VIP draw at night.

What should you check before the machine arrives?

Four site conditions decide whether installation takes an hour or a day. First, ceiling height: the machine stands 1940 mm and the top display tube is the highest point, so confirm clear height at the exact staging position, including any stage platform. Second, access: the cabinet footprint is 780 x 780 mm, so measure the narrowest doorway and turn on the load-in path; the casters handle flat floors but the unit should be lifted, not rolled, over thresholds and cables. Third, power: one earthed outlet supplying 110-120V 60Hz or 220-240V 50Hz at 450 W, specified when you order so the correct configuration leaves the factory. Fourth, care: the gold and acrylic faces scratch if they meet sharp tools, so keep box cutters away during uncrating, and clean only with a damp soft cloth without special detergents. The machine is CE compliant and leaves our factory in a framed wooden export crate.

What can Jisun customize on the YP600?

The YP600 is already the deluxe edition of our air-blower line, and most custom requests from casinos and cruise buyers are about identity rather than mechanics. We can produce the cabinet and trim in your venue's colors, apply your logo to the cabinet or the acrylic podium, and integrate RFID ball verification, a camera, or a display screen for venues that broadcast or audit their draws. If your game format differs from standard lottery draws, tell us the rules and our engineers set the machine's parameters and ball configuration to match before it ships. Custom sizes are also possible when a fixed installation demands it; share your floor plan and we will confirm what can be adjusted. Every custom YP600 keeps the same 450 W blower system, 15-second draw cycle and dual-voltage CE-compliant electrics as the standard machine.

YP600 Technical Data

Gold Pedestal Air-Blower Specifications and Site Requirements

Model
YP600
Footprint
780 x 780 mm (fits through standard 800 mm+ doorways for event load-in)
Compliance
CE compliant
Rated Power
450 W (runs on a standard wall circuit, no dedicated line required)
Power Supply
110-120V 60Hz or 220-240V 50Hz, specify at order
Ball Diameter
4 cm (table-tennis style or solid balls)
Overall Height
1940 mm (confirm ceiling clearance plus top display tube before staging)
Draw Cycle Time
15 seconds per selection
Operating Style
Air-blower mechanical mixing, automatic and interactive modes
Working Ball Capacity
30-300 balls

Custom Branding, RFID and Camera Options for the YP600 Deluxe Edition

  • Custom cabinet and trim colors to match venue branding
  • Customer logo applied to the gold cabinet or acrylic console podium
  • RFID ball verification system for audited draws
  • Integrated camera for recording or broadcasting the draw
  • Display screen integration for live result presentation
  • Game-rule based configuration of draw parameters and ball setup
  • Custom dimensions for fixed installations (confirmed against your floor plan)

Crating, Delivery and Warranty for the 1940 mm YP600

The figures below follow common B2B export practice for arcade and amusement equipment. Final MOQ, schedule, freight term, and warranty coverage are confirmed in the quotation or proforma invoice for your order.

MOQ
1 unit (sample order accepted)
Confirmed for this product.
Production Lead Time
25 days
Estimated production time after order confirmation.
Shipping
EXW / FOB Guangzhou / CFR / CIF
Available trade term for this product.
Warranty
12 months
Product warranty period confirmed for this model.

Buyer Questions

FAQ: Planning a Venue for the YP600 Air-Blower Lotto Machine

What ceiling height does a venue need for the YP600?

The machine stands 1940 mm tall, and the transparent top display tube is its highest point. Plan for the full 1940 mm plus working headroom above the tube so staff can load balls and the audience can see selections clearly. If the machine goes on a raised stage or platform, add the platform height to 1940 mm and measure the ceiling at that exact position. Cruise decks and ballrooms with low chandeliers or lighting trusses should confirm clearance before scheduling the draw event.

What power supply does the luxury air blower lottery machine need?

The YP600 runs at 450 W and is supplied in either 110-120V 60Hz or 220-240V 50Hz configuration. Tell us your venue's voltage when you request a quote so the correct version leaves the factory. At 450 W it draws less than most stage lighting fixtures, so a single standard earthed wall outlet near the staging position is sufficient; no dedicated circuit or three-phase supply is required. The machine is CE compliant for export markets.

How many balls can the YP600 handle in one draw session?

The working ball capacity is 30 to 300 balls, each 4 cm in diameter, using table-tennis style balls or solid balls. You set the actual count to match your event: a small VIP member draw might run 50 balls, while a real-estate launch with hundreds of units can load toward the 300-ball maximum. In automatic mode the microprocessor also controls how many balls are selected per session and the interval between selections, so one machine covers both formats.

Can the machine run scheduled draws without a dedicated operator?

Yes. In automatic mode a microprocessor controls all draw functions: mixing duration, number of balls selected, and the pause between selections. Once your staff programs these parameters at the start of the event, the machine repeats the cycle identically without further input, which suits casinos and cruise ships running fixed entertainment schedules. When you want a host to control the tempo live, switch to interactive mode and run each stage from the console podium beside the machine.

How do we move and clean the gold cabinet and acrylic console?

The cabinet base is fitted with casters, so two staff can roll the machine across flat floors between a lounge, stage and storage. Lift it over thresholds and cables rather than rolling it across them. For cleaning, wipe the gold finish, transparent chamber and acrylic podium with a damp soft cloth only; no special detergents are needed. Keep sharp tools away from all visible surfaces during uncrating and setup, because scratches on the gold and acrylic faces cannot be polished out easily.

Can Jisun add our logo, RFID verification or a camera to the YP600?

Yes. Cabinet and trim colors, your logo on the cabinet or acrylic podium, RFID ball verification, an integrated camera and a display screen are all available as factory options on the YP600. These are the options casinos and broadcast venues request most often for auditing and televising draws. If your draw format follows specific rules, share the game flow with us and we will configure the machine's parameters and ball setup accordingly before shipment. Custom dimensions can also be discussed for fixed installations.

Amusement-only, no cash payout. Local compliance required; operator is responsible for local regulations.
