Fast Draw 10-Ball Lottery Machine with Quick Draw System

The Fast Draw 10-Ball Lottery Machine with Quick Draw System is a 1650mm air-blower draw unit built for operators who run the shortest possible rounds: its standard cycle draws 10 balls from 10 in a 15-second cycle. A transparent acrylic sphere on a deep-blue wheeled pedestal, console button and mouse control, and an external result screen make it a complete rapid-draw station.

How Does the Air-Blower System Complete a 10-Ball Draw in 15 Seconds?

The machine works purely on blown air. A 450W blower drives a jet of air up through the base of the spherical chamber, lifting the numbered balls into constant turbulent motion so every ball has an equal chance of reaching the exit point. Instead of releasing balls one at a time with long pauses, the quick draw system ejects the drawn balls in rapid sequence through a curved transparent chute mounted on the side of the sphere. In the standard configuration the machine draws 10 balls from a set of 10, so a complete game round finishes within a 15-second draw cycle. For fast-game operators measured on rounds per hour, that cycle time is the whole point of this machine: more rounds per session without any manual ball handling between draws.

How Are the Sphere, Quick-Eject Chute and Blue Pedestal Constructed?

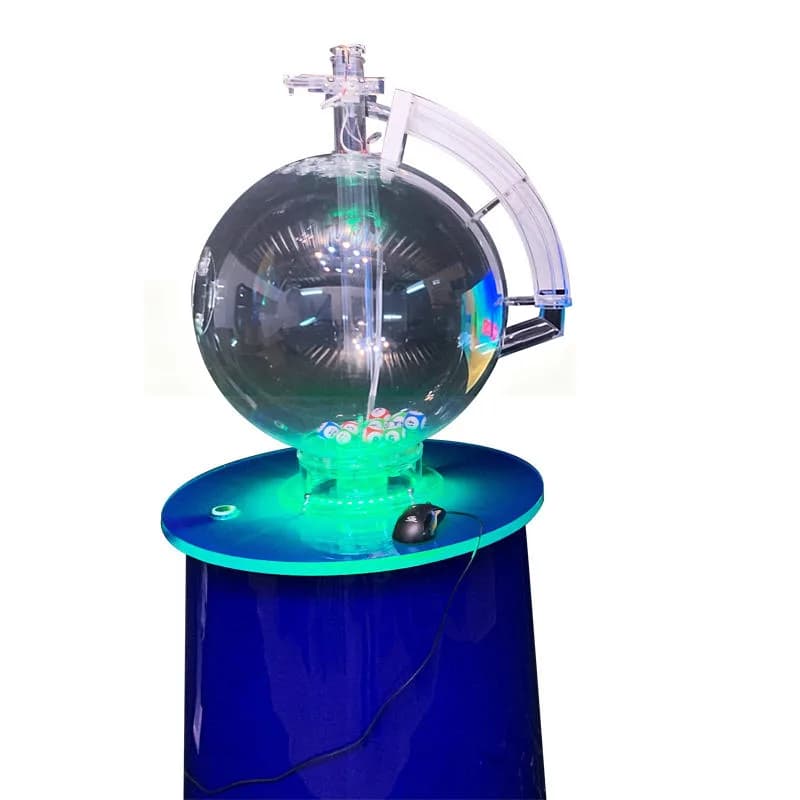

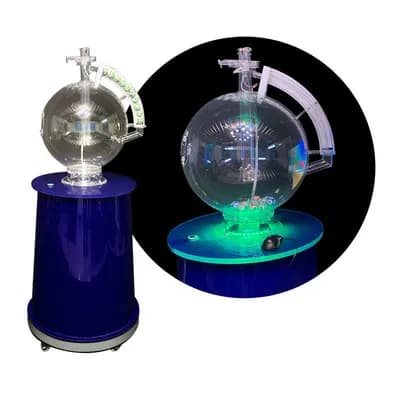

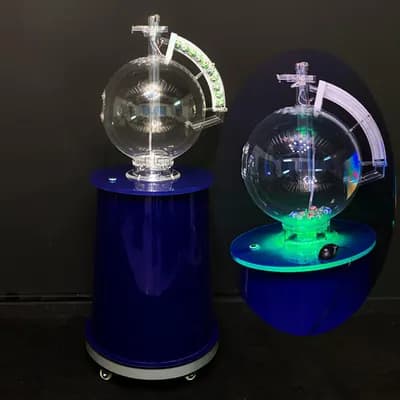

The upper section is a fully transparent acrylic spherical mixing chamber, which lets players and cameras see the balls circulating throughout the draw — a basic fairness requirement for any televised or public draw. A curved transparent collection tube arcs over the side of the sphere and receives the ejected balls in draw order, so the result can be read directly from the chute. Color LED lighting is built into the chamber base and the chute area, giving green, red and other color effects during operation. The chamber sits on a deep-blue cylindrical pedestal measuring 730mm in length and 730mm in depth, with an overall machine height of 1650mm — tall enough to put the sphere at standing eye level for an audience. Caster wheels under the pedestal base let one person roll the complete unit between a stage, a game room floor and a storage area.

What Electrical and Control Hardware Runs Each Draw?

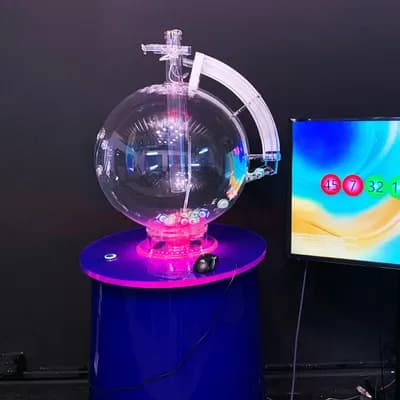

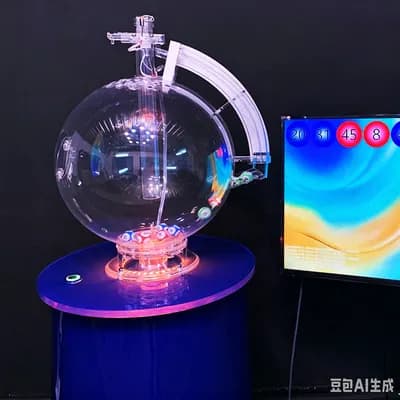

The electrical system is built around the 450W blower motor, the LED lighting circuit and a compact control unit. Operation is deliberately simple: a round push button on the pedestal top starts the cycle, and a mouse connected to the controller lets the operator navigate the game software, set up the round and confirm results. Drawn numbers are sent to an external monitor positioned next to the machine, where they appear as large colored circles that an audience can read from a distance — the machine itself needs no built-in screen, which keeps the sphere visually clean and the electronics easy to service. Because the whole draw sequence is blower-driven and controller-timed, the operator's only job between rounds is to reset the software and press the button again.

Which Game Formats Can This Quick Draw 10 Ball Machine Run?

Out of the crate, the machine is configured for its signature format: 10 balls drawn from 10, completed in a 15-second cycle. The working ball load ranges from 30 to 300 balls, so the same hardware can be loaded for games that draw from a larger pool when an operator's rules require it. The 40mm numbered balls and the air-mixing principle stay the same across formats; what changes is the ball count and the software setup. If your game follows its own rules — a specific pool size, a specific number of drawn balls, a custom result display layout — tell us the rules and we configure the machine and software to match before it leaves the factory.

How Is the Machine Assembled, Tested and Packed Before Dispatch?

Each unit is assembled as a complete station — blower, chamber, chute, lighting, controller and pedestal — and run through draw cycles before packing so the quick-eject timing and ball flow are verified on the actual machine you receive, not on a test rig. The acrylic surfaces should be cleaned only with a damp soft cloth; sharp tools scratch the sphere and no special detergent is needed. For export, the machine is packed in a wooden crate reinforced with a metal frame, with warning labels on the crate for handling. Jisun backs the machine with a 36-month after-sales service period and free technical support from a team with more than ten years of lottery machine production experience.

Where Does a Rapid Draw Lottery Machine Fit Best?

This fast draw lottery machine is built for venues where draw frequency drives the business: bingo and lottery-style game rooms running continuous sessions, fast-game operations that need maximum rounds per hour, promotional draws at events, exhibitions and company celebrations, and arcade or entertainment centers adding a live-draw attraction. The 730mm x 730mm footprint fits a corner of a game room or a stage edge, the casters allow daily repositioning, and the external monitor can feed a wall screen for larger audiences. Contact us with your venue size and game format for a configuration and a factory quote.
