5P350 Multi-Cylinder Pick 5 Bingo Machine

The 5P350 is a multi-cylinder pick 5 bingo machine built for bingo-style operators who draw five positions per game and want each position visible as it happens. Five transparent air-blower chambers sit side by side on one bench, each paired with its own numbered display window below. Character count is selectable, chambers draw individually or together, and an optional standalone screen mirrors the full result.

How Does the 5P350's Five-Cylinder Blower System Mix and Select Balls?

Each of the five transparent cylinders carries its own top-mounted metal stirring and blowing assembly. When a draw starts, the air current and stirring action keep the 4 cm balls in constant turbulent motion inside the chamber, so the ball population is fully randomized before any selection is made. Because each cylinder is a mechanically independent unit with its own drive, the machine can release one ball from a single chamber or fire all five chambers at the same moment. This dual mode is the core of the multi-cylinder layout: a presenter can build suspense position by position, or complete a five-position draw in one fast action when the program schedule is tight.

The fast mixing and selection action also shortens the total cycle time of games that involve many selections in a row, which is typical for bingo-style Pick 5 formats running repeated rounds in an evening. After a ball is read, it does not need to be collected by hand. The selected ball returns to its chamber quickly and without any manual handling, so the machine is ready for the next round immediately and the ball population stays complete across a long operating session.

What Is the 5P350's Cabinet and Chamber Structure Built From?

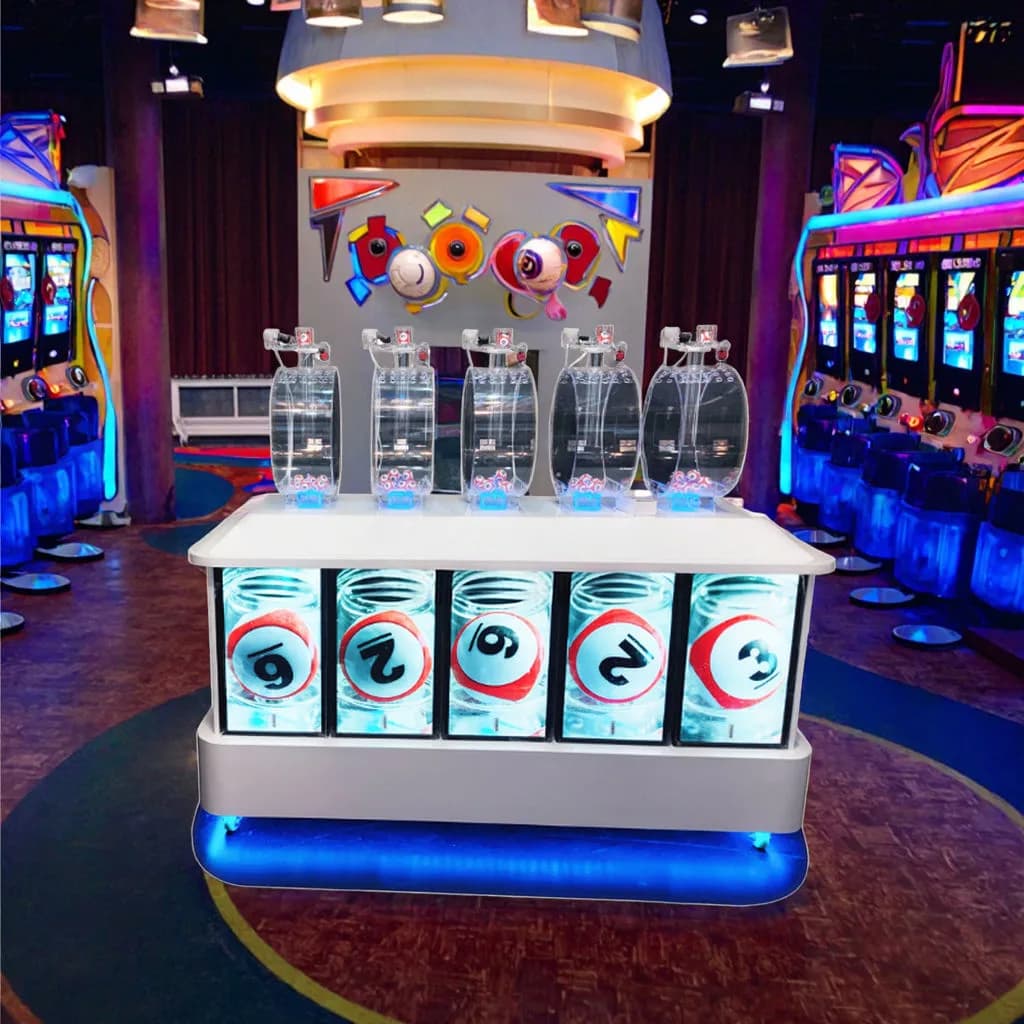

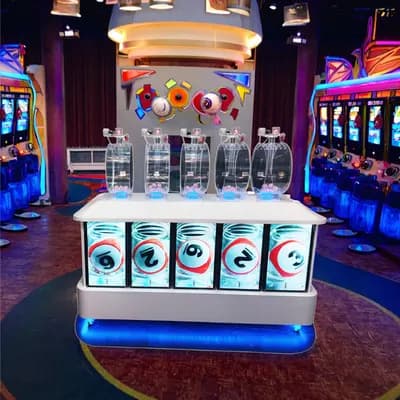

The upper structure is a row of five transparent cylindrical chambers. Full transparency is a functional choice, not decoration: players and cameras can watch the balls tumbling in every chamber throughout the mixing phase, which is the visible guarantee of a fair draw. On top of each cylinder sits the metal stirring and blowing mechanism that drives the air mixing, and the base of each chamber is lit in purple so the ball action remains readable on a dark stage or in a dimmed game hall.

The chambers are mounted on a long bench-style cabinet. The front face of the bench carries five large number windows, one aligned directly beneath each chamber, and the plinth is wrapped with a blue LED strip. The cabinet is produced in white or yellow finishes, so the bench can be matched to a venue's color scheme. Overall dimensions of the bench can be customized to fit the operator's stage or floor layout; confirm the target footprint with our team when requesting a quote.

How Are the Electrical and Control Sections Organized?

On the automatic version, all machine functions are governed by a microprocessor. The operator does not ride manual switches during a game; instead, the draw parameters are set in advance and the controller executes them identically round after round. Two parameters matter most in daily operation: the duration of the mixing phase, which decides how long the balls are agitated before a selection is allowed, and the time interval between selections, which sets the rhythm of a five-position draw.

Because the five chamber drives are controlled separately, the same microprocessor that sequences the timing also decides whether chambers fire one by one or simultaneously. The lighting circuits for the purple chamber bases and the blue plinth strip run independently of the draw logic, so the machine keeps its visual presence while idle between games. For operators who need audience-scale readout, the control section also supports an optional standalone floor screen that displays the drawn combination away from the bench.

How Do the Five Digit Windows and Optional Result Screen Present the Draw?

The five windows on the bench front map one-to-one onto the chambers above them. Each window shows a large digit in a red-ringed ball graphic — a drawn line such as 9-2-6-4-3 reads left to right across the bench, and each digit is visually tied to the chamber that produced it. This per-chamber window layout is what separates the 5P350 from single-chamber machines with one shared readout: every position of a Pick 5 result has its own physical place on the machine.

The character count per draw is selectable, so the same machine can be configured to the number of positions a specific game format requires rather than locking the operator into one fixed layout. For larger rooms, the optional standalone screen sits on its own floor stand and displays the complete combination in large illuminated digits — for example 94805 — legible to audiences who are too far from the bench to read the window graphics.

What Assembly and Factory Checks Does the 5P350 Go Through Before Export?

Assembly follows the machine's structural logic. The bench cabinet is fabricated and finished first, then the five transparent chambers are seated and aligned over their window positions, the metal stirring and blowing heads are fitted to each cylinder, and the microprocessor controller, chamber drives and LED circuits are wired and routed inside the bench. After assembly, each machine runs draw cycles to verify the mixing and selection action, the individual and simultaneous draw modes, the automatic ball return, and the adjustable mixing-duration and interval settings, before it is released for packing.

Export packing uses wooden crates marked with fragile and this-side-up handling symbols, and export crates are reinforced with an iron frame so the transparent chambers and the bench cabinet survive long sea-freight journeys. Tell us your destination port when you request a quote and we will confirm the crate plan and routing for your shipment.
