5P350 Five-Cylinder Lottery Machine 3-230 Balls

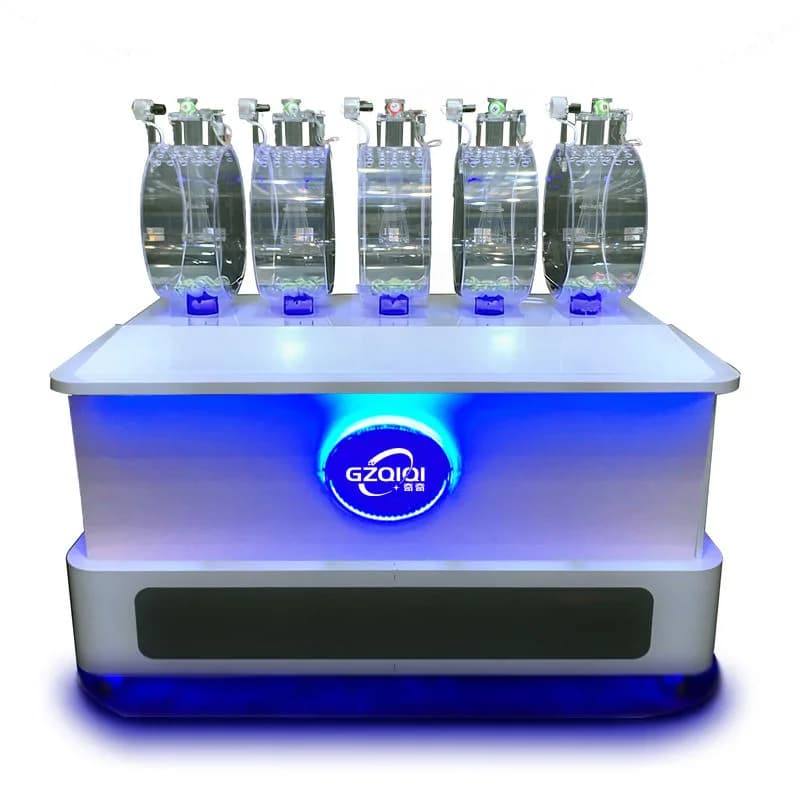

The 5P350 is a five-cylinder lottery machine built for operators who need one draw platform to cover very different game sizes. Its working-ball range runs from just 3 balls up to 230 balls, so the same 113 kg cabinet can run a quick three-pick promo draw in the morning and a full 230-ball number game in the evening. Five transparent acrylic chambers sit in a horizontal row on top of a white LED-lit cabinet with an illuminated oval brand emblem front and center, and RFID, camera and screen options are available for venues that need a verifiable, audience-facing draw.

What makes the 5P350 different from other multi-cylinder lottery machines?

Most multi-cylinder lottery machines are built around one fixed ball pool. The 5P350 multi cylinder lottery machine is rated for an unusually wide 3-230 working-ball range, which changes how buyers can use it. Load a handful of balls per chamber for fast promotional draws at a retail event, or fill the pool toward 230 balls for a full-size number draw at a game room or company celebration. Five separate transparent chambers can release balls individually or simultaneously, so pick-3, pick-5 and multi-digit formats all run on the same hardware. A microprocessor controls every draw parameter, including the duration of ball mixing and the time interval between each selection, which means the machine adapts to your game rules instead of forcing your game rules to adapt to the machine. The full system is rated at 2500 W, runs a 15-second draw cycle, and sits on casters so one unit can serve multiple venues or event locations.

How do the 5P350's dimensions and weight affect installation planning?

The 5P350 measures 1750 mm long, 620 mm deep and 1560 mm high, with a net weight of 113 kg. In floor-planning terms, that is roughly the footprint of a standard double-door display cabinet: it fits against a wall, behind a service counter or on a small event stage without demanding a dedicated machine room. The 1560 mm height puts the five transparent chambers and their top-mounted mixing and release mechanisms at comfortable standing eye level for an audience, while the operator works at cabinet height. At 113 kg, the cabinet is heavy enough to stay stable during a full 230-ball mixing cycle, yet it rolls on fitted casters, so two staff can reposition it between a game room floor and an event hall without pallet jacks or rigging. Door width is the only real constraint: plan for a clear opening wider than 620 mm on the delivery route.

What do the 3-230 ball capacity and 15-second draw cycle mean for your game formats?

Capacity and cycle time are the two numbers that decide what a draw machine can actually earn its keep doing. On the 5P350, the 3-230 ball range covers everything from a three-number raffle pick to a full-scale 230-ball number game, and the 15-second draw cycle keeps each selection short enough to hold a live audience's attention. Because the five chambers can release individually or simultaneously, a single machine supports sequential draws (one digit per chamber, in order) and parallel draws (all chambers at once) without reconfiguration. The table below maps each key parameter to what it means when you are choosing between machines.

Which power supply and site utilities does the 5P350 need?

The 5P350 is a plug-in machine, not a hard-wired installation. It is supplied for either 110-120 V / 60 Hz or 220-240 V / 50 Hz mains, and you specify which version when ordering, so buyers in North America, Europe, the Middle East and Asia all receive a unit matched to their local grid. The 2500 W rating covers the complete system: five chamber mixing and release mechanisms, the microprocessor control, the multi-color LED ambient lighting with base light strip, and the illuminated front emblem. For venue planning, that figure means one dedicated wall circuit is sufficient — there is no need for three-phase power or an electrician on site for setup. The machine is CE compliant. Day-to-day care is simple: keep sharp tools away from the acrylic chambers to avoid scratches, and clean with a damp soft cloth without special detergents.

Can the 5P350 be customized for your brand and venue?

Yes, and customization on this model goes well beyond a sticker. Color, dimensions, logo, RFID, camera and screen are all offered as customer-requested options. The illuminated oval emblem at the center of the white cabinet is the natural home for your own brand logo, and the multi-color LED lighting — which shifts through blue, purple, green, cyan, yellow and more — can be tuned to match a venue or event identity. RFID adds ball-level verification for draws that need an auditable result, while the camera and screen options turn the machine into a self-contained broadcast setup: the audience watches the numbered 4 cm balls mix and release in the transparent chambers on a connected display. Cabinet dimensions can also be adjusted to fit a specific floor position, and the factory sets up the machine against your actual game rules — tell us your draw format and the mixing duration, intervals and release sequence are configured to match before shipment.

How is the 5P350 packed and supported after delivery?

Every 5P350 leaves the factory in an export wooden crate marked with fragile and this-side-up labels, sized for the 1750 x 620 x 1560 mm cabinet and its acrylic chamber assembly. Crated units load directly onto trucks and containers, as shown in our shipping photos, so sea freight and consolidated container loads are both routine. After delivery, buyers receive free professional technical support and a free 36-month after-sales service period — three full years of coverage on a machine with no consumable parts beyond the numbered balls themselves. Jisun's team has more than ten years of lottery machine research and production experience, provides free pre-sales consultation and free machine design against your game rules, and supports you remotely through installation, parameter setup and operator training. Minimum order is a single unit, so you can validate the machine in one venue before equipping a chain. To get a configured quotation for the 5P350, send us your target game format, ball count and destination port.
