4P350V Zodiac Ball Pick 4 Lottery Machine

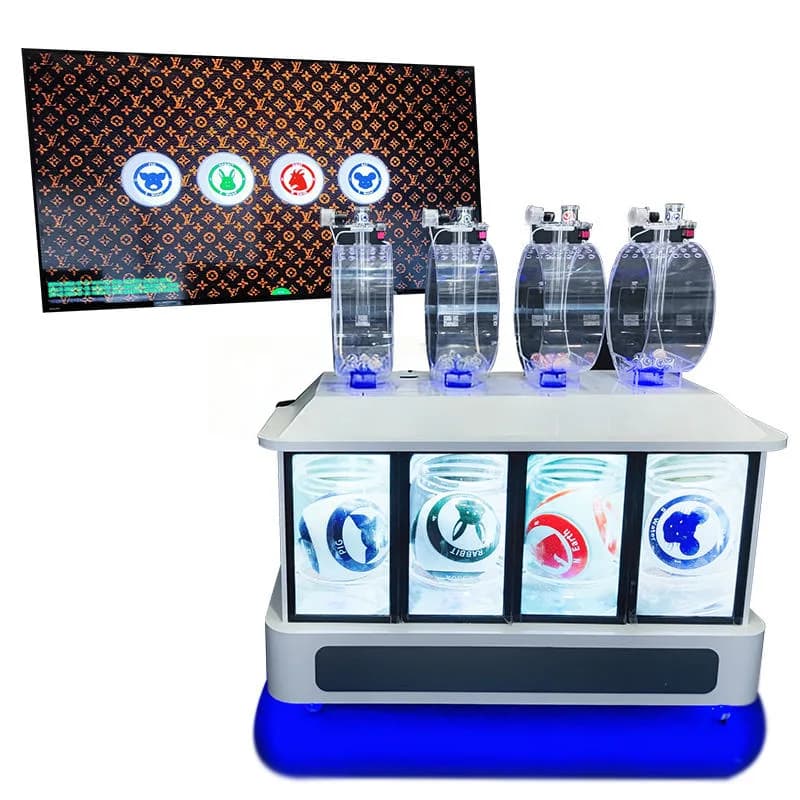

The 4P350V Zodiac Ball Pick 4 Lottery Machine is a four-cylinder drawing unit built for operators who run symbol- or constellation-themed pick-4 games rather than numbered draws. Four air-blow cylinders each release one ball, and the result appears as colored zodiac-style icons on four front screens plus a large rear screen. It stands 156 cm high, 175 cm wide and 62 cm deep.

What Makes the 4P350V a Zodiac Ball Lottery Machine Instead of a Standard Pick 4?

The difference is what the audience sees after the draw. On a conventional pick-4 machine, each chamber feeds a numbered ball and the display simply shows four digits. On the 4P350V, each of the four front screens presents a colored round icon — the product photos show blue, green, red and dark-blue constellation-style symbols — and the large rear screen repeats all four icons on a decorative background with an information bar underneath. That changes the machine's role on the floor: it is not producing a number for a digit-matching ticket game, it is presenting a four-symbol combination that players read as zodiac signs, constellations or your own custom marks. For markets where the game format is built around symbols rather than numerals, this is the hardware that actually matches the rules.

Underneath the icon layer, the mechanics remain a true multi-cylinder pick-4. Each of the four transparent acrylic cylinders mixes its own set of balls and releases exactly one per draw, so the four-symbol result comes from four physically independent chambers — the same draw integrity a numeric operator would expect, delivered in a symbol-based presentation.

How Does the Four-Cylinder Air-Blow Draw Work?

Each cylinder is a self-contained drawing chamber. The EVA solid balls — 4 cm in diameter, with numbers printed on six sides — rest at the bottom of the transparent tube. When a draw starts, the air-blow system drives the balls into motion inside the cylinder so every ball has an equal chance of reaching the outlet, and the mechanical valve device at the top of each tube lets a single ball through. Because the four cylinders run in parallel, one complete four-position result is produced in a single draw cycle instead of four sequential picks. With up to 10 balls loaded per cylinder, each position offers 10 possible outcomes per draw.

Visibility is treated as part of the draw itself. The clear acrylic tubes let the audience watch the balls moving throughout the cycle, a blue illuminated base sits under each cylinder, and a glowing blue skirt runs along the bottom of the cabinet. Once the balls settle, the four front screens switch to the resulting icons and the rear big screen shows the full four-icon combination large enough for a crowd standing back from the machine to follow.

Who Should Choose an Icon-Based Pick 4 — and When Is a Numeric Model the Better Fit?

Choose the 4P350V when your game is read as symbols: zodiac-themed raffles, constellation promotion draws, event nights where the winning combination is a row of icons rather than a number. Typical settings include shopping mall promotion stages, family entertainment center event programs, cinema lobby campaigns and amusement park game shows, where a symbol result is easier for a passing audience to understand at a glance and fits a themed marketing concept. If your market instead requires players to match printed numeric tickets against drawn digits, a numeric multi-cylinder pick-4 model will serve you better — the icon display layer would add cost without adding value to that format.

Plan floor space before you commit. At 175 cm wide, 156 cm high and 62 cm deep, this is a full-size presentation machine, not a counter-top unit; it needs a dedicated position where both the four front screens and the rear big screen stay visible to the audience you expect.

Matching the Machine to Your Constellation Game

Customization is part of the order process, not an afterthought. Send us your game rules — how many symbols are in play per position, what each icon means, how a draw is won — and the machine is configured to those requirements before it leaves the factory. The icon sets shown on the four front screens, the background layout and information bar on the rear big screen, and the ball load per cylinder (anything up to the 10-ball maximum) can all be adapted to your format. Overall dimensions can also be tailored when a venue layout calls for it.

Export Crating, Delivery and Support

Every 4P350V ships in a professional export wooden crate built for long-haul freight, protecting the acrylic cylinders, screens and illuminated bases in transit. We work under EXW, FOB Guangzhou, CFR or CIF terms depending on how your forwarder is set up, and standard lead time is around 15 working days from order confirmation. Each unit is covered by a 12-month warranty, and spare EVA balls and wearable parts can be added to the same shipment so your first service cycle is already stocked. Tell us your game format and destination port through the Get a Quote form and we will come back with a configured proposal.
