1P420V RFID Air-Mix Lottery Machine with External LCD

The 1P420V is an rfid air mix lottery machine that reads every drawn ball number automatically and pushes it to an external floor-stand LCD for the whole audience to see. It is built for operators running raffles, lucky draws, and number-selection events who need hands-free number capture, an on-machine illuminated result window, and a separate big screen for records and spectators.

How does the RFID air mix lottery machine capture and show the numbers?

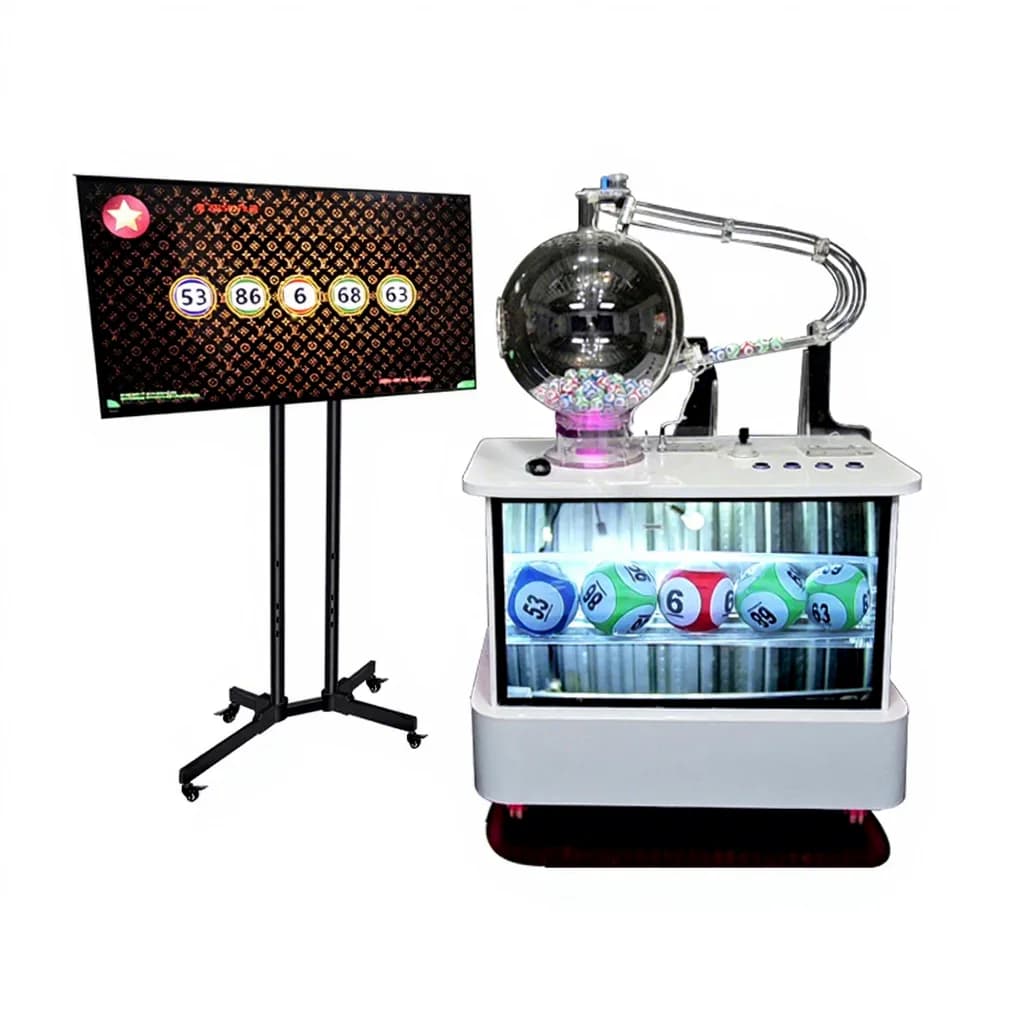

Every ball in the 50-ball set carries an RFID identity, and the machine reads each drawn ball the moment it is selected. The number is then pushed to your additional external LCD, which mounts on its own floor stand and can be positioned facing the audience while the machine itself faces the host. This removes manual number calling and manual entry errors: the number the machine draws is exactly the number on the big screen. On the machine body, drawn balls travel from the transparent spherical air-mix chamber through a curved transparent tube into an illuminated front display window, so guests watch the physical balls while the LCD shows the confirmed digits. The draw sequence works like this:

• Solid numbered balls are mixed by air inside the clear spherical chamber.
• A drawn ball moves through the curved transparent tube to the front window.
• The RFID system reads the ball number automatically as it is drawn.
• The number appears on the external floor-stand LCD for audience and records.
• Large numbered result balls remain visible in the illuminated front window.

What ball capacity and display setup does the 1P420V use?

The standard capacity of the 1P420V is 50 solid balls of 4 cm diameter, loaded into the air-mix chamber. The machine has a screen function for showing lucky balls, and factory testing gives clear guidance on how many to display: three lucky balls on screen is the best configuration, verified through extensive testing. Displaying four to seven balls also works without any problem, but the factory does not recommend going beyond seven, because the display loses clarity. For operators, this means the machine fits draw formats from a single lucky number up to a seven-ball combination, with three-ball draws giving the cleanest visual result on both the front window and the external LCD. The result balls shown in the illuminated window are large numbered balls in colors such as blue, green, and red, which read clearly at a distance under the window lighting.

Who is the 1P420V built for?

This model targets operators who need automatic number capture displayed on a separate big screen rather than on the machine alone. If your draw is watched by a crowd — a shopping mall promotion, an arcade jackpot-style raffle with prizes in kind, a family entertainment center event, or an amusement park nightly draw — the audience needs to see the number at the same moment the host confirms it, and the organizer needs an accurate record of every result. Typical placements include:

• Shopping mall promotional draws and member lucky-number events
• Arcade and game center raffles with prize giveaways
• Family entertainment center weekend draw activities
• Amusement park and carnival number-selection games
• Corporate events, exhibitions, and stage draws with an MC

An optional clear acrylic podium with ambient lighting can stand beside the machine for the host, keeping the draw area tidy on stage.

Can the machine be customized to my game rules?

Yes. The factory offers a custom service built around your game: tell us your draw format and rules, and the machine is configured to match before delivery. That includes how many result balls your game draws and shows on screen, the numbering set on the 50 solid balls, and the way results are presented on the external LCD. Machine dimensions can also be built to suit your venue when a standard footprint does not fit your stage or floor plan. Custom setups are handled case by case, so the fastest way to get a firm configuration and quotation is to send your game rules with your inquiry — the factory has produced multiple customer-specific models on this basis and will confirm feasibility and lead time directly.

How do I clean and maintain the 1P420V?

Daily care is simple and needs no chemicals. Wipe the machine with a damp soft cloth; no special detergent is required. One caution from the factory: never use sharp tools on the machine, because they scratch the face of the unit and the transparent panels. The clear chamber, curved tube, and display window are the visual center of your draw, so keeping them scratch-free keeps the whole presentation professional. Beyond cleaning, routine checks are limited to confirming the balls move freely in the chamber and that the external LCD connection is secure before each event. No consumables are used in the draw itself, so ongoing running costs stay minimal.

What should I confirm before requesting a quote?

Three things let the factory quote accurately on the first reply. First, your game rules: how many balls you draw per round and how many numbers you want shown on screen, since three is the tested optimum and seven is the recommended ceiling. Second, your venue: whether the machine and the floor-stand LCD will be placed on a stage, at an entrance, or inside a game area, and whether you need a custom machine size. Third, your destination market and delivery terms, so voltage, plug standard, packing, and shipping can be arranged correctly. Send these with your inquiry through the Get a Quote button and the factory will respond with configuration, packing details, and lead time for the 1P420V.
